Artículo: AMZ-B08XV26WPS
10pcs CD74HC4067 16-Channel Analog Digital Multiplexer Breakout Board Module for Arduino 2V-6V Microcontroller 16 Device RX Lines
En stock
0.20 kg
Si
Nuevo
Amazon

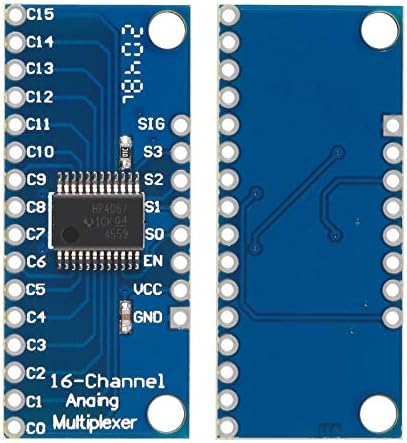

- This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx)
- It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction.
- Analog output: DIG;Channel control: S0-S3
- This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067.
- To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want. This allows you to connect up to 16 sensors to your system using only 5 pins!
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
