X-BULL Winch-13500 lb. Load Capacity Electric Winch Kit 12V Synthetic Rope,Waterproof IP67 Electric Winch with Hawse Fairlead, with Wireless Handheld Remote and Corded Control Recovery
Size:
13500 lbs-XPV SERIES
En stock
27.62 kg
Si
Nuevo
Amazon
USA
- One single X-BULL 12 v synthetic rope electric winch has 13500 lb. of load capacity. High current conductivity is ensured by the multi-position control box contact material AGC, giving safety against current, voltage and temperature. High magnetic induction melting point, high temperature resistance, strong power, safe operation and high efficiency pure copper motor. Instructions: To pull the cord, move the clutch handle to the release position. Reconnect the clutch by moving the clutch handle to the engaging position. To pull out the string, move the clutch handle to the release position, slide the loop of the hook strap over the hook, and pull out the hook strap to pull out the string. Tips: Keep at least 5 complete turns of wire rope on the drum. If the winch is overloaded, the steel casing effectively protects the winch body. Frosted black paint won't rust. Avoid damaging the capstan during the working cycle and stay within the allowed duty cycle time. The Duty Cycle specifies the maximum period of 15 minutes that the winch may run at without overheating. For instance, this winch's maximum load cycle of 5% requires that at least 14 minutes pass before retransmission, 15 seconds after every 45 seconds of continuous operation.
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
★ APPLIES FRANCHISE
Conocé más detalles

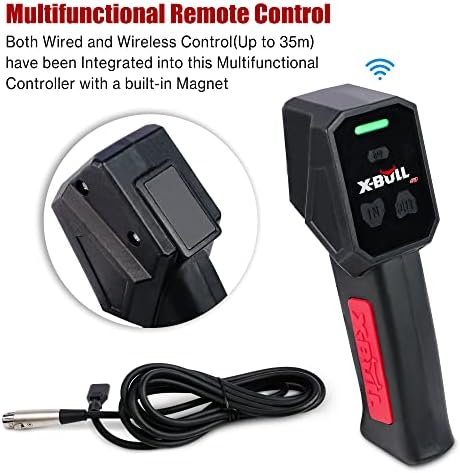

[Features] Our winch has a new generation of wireless remote control, with an IP67 waterproof grade, that can operate accurately from a distance regardless of terrain or weather. This versatile controller incorporates wired and wireless control (up to 35m) [Electric Winch] The 13500 lb. winch powered by a 4.5kw/6.0hp output series wound motor12V motor. The new solenoid successfully implements the principles of heat insulation, toughness, high stability, avoid the problem of capstan damage or motor burning caused by insufficient solenoid power. The connection between the clutch and the gear is strengthened by the new clutch system, making it more difficult to damage the clutch. [Safety] For positive load control, there is a Power in & Power out motor. The powerful current can not only support the motor's operation smoothly and work within its rated current without any current impact, but also ensure the electric winch safety and your safety at all times. A 3 stage, 6.0 HP series wound motor comes with a 265:1 planetary gear ratio. [Gear System] With its modern and effective 3 planetary gear system, free spooling clutch and ability to deliver strong traction under load and higher linear speed, this electric winch will prove to be an invaluable travel companion. [Installation Dimensions] (length X width X height) 20.8"X 6.5" X 10.2", mounting bolt type: 10.00 ± 0.015" × 4.50 ± 0.010". Synthetic rope: 3/8"x 82feet.
