Artículo: AMZ-B0C2H45H89

Geekworm

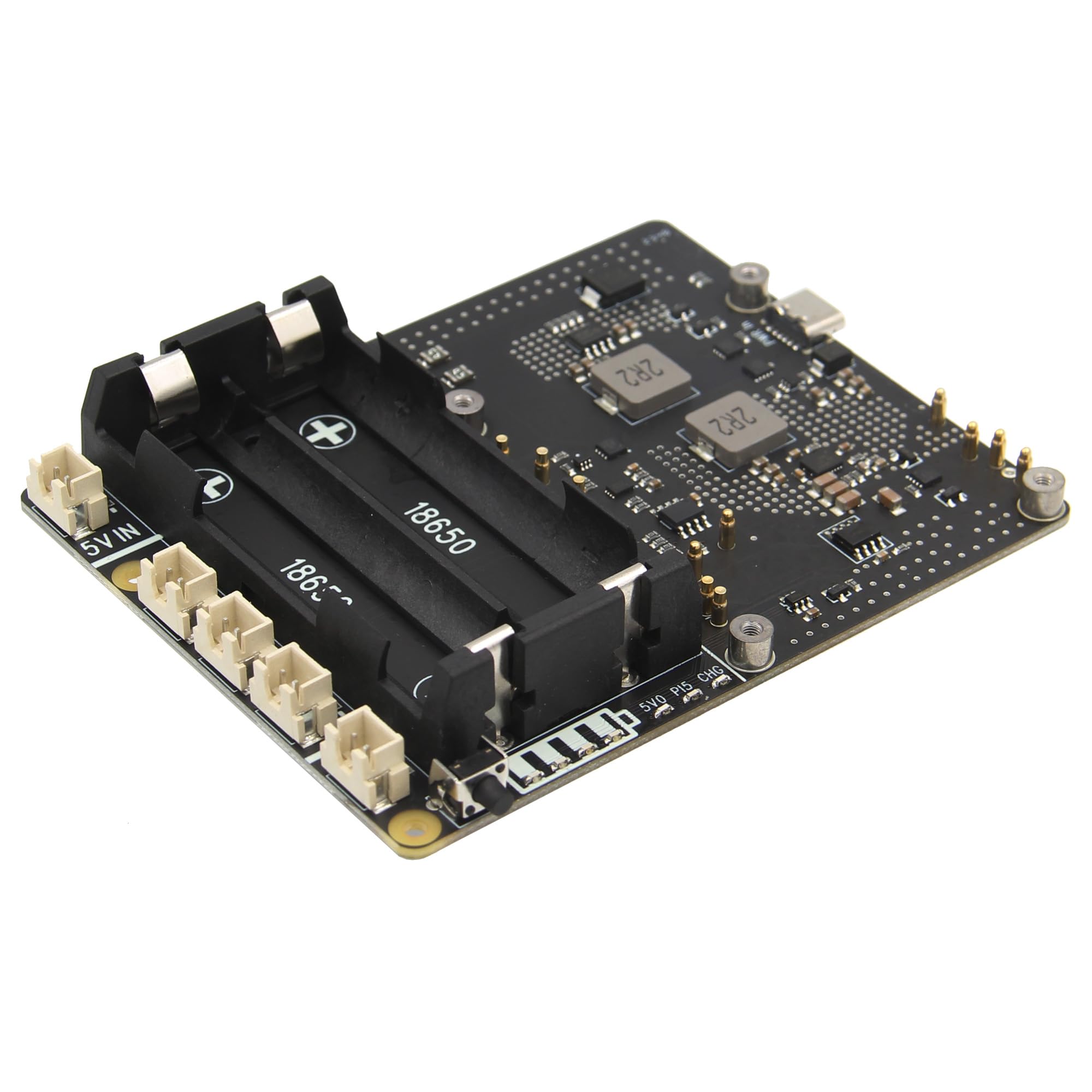

Geekworm X-UPS1 12V/5V Dual Output Universal SBC Stackable Uninterruptible Power Supply UPS Shield with Acrylic Plate Compatible with Raspberry Pi/Orange Pi/Jetson Nano/Rock Pi/Tinker Board

Disponibilidad
En stock
Peso con empaque
0.20 kg
Devolución
Si
Condición
Nuevo
Producto de
Amazon

Sobre este producto
  • Compatibility: Compatible with most Single Board Computers (SBC) that uses 12Vdc or 5Vdc, such as Orange Pi 5/5B/4B, Raspberry Pi 5/4B/3B+/3B, Jetson Nano, Jetson Orin Nano, Jetson AGX Orin,Tinker Board, Rock Pi, Arduino etc
  • Stackable Design: X-UPS1 can be stacked to increase output current and battery life, each board provides max 3A power backup; Stack several X-UPS1 to provide long-lasting and higher output power for 24/7
  • Specifications: Power input (Single board) : 6-18Vdc ±5%, ≥3A; UPS output voltage : 12Vdc ±5%, 5.1Vdc ±5% UPS output current (Single boards) : Max 3A; UPS charging current (Single board) : 2.3~3.2A
  • Multi Function: Wide power input 6-18V;AC power loss or power adapter failure detection;Low voltage detection; Auto power on; Protection of battery cell reverse connection
  • Packing List: 1 x X-UPS1 Expansion Board(not include battery); 1 x 4Pin PH2.0 to dupont cable; 1 x VH3.96 to DC5525 Cable; 1 x XH2.54 to DC5521 Cable; 1 x GPIO Header; 1 x Screws Pack

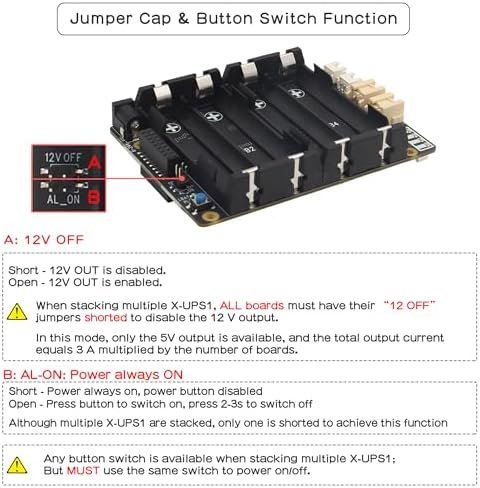

  • Power Output Note: 5V and 12V cannot be used together. When stacking X-UPS1 boards, ALL boards must have their “12 OFF” jumpers shorted to disable the 12V output. In this mode, only 5V output is available, total current = 3A × number of boards.
